Replacement Parts

You can get genuine Multi Shelter Solutions parts for your structure repairs. Here is a catalogue to help you find the correct parts. Until this is completed, please call or email for assistance.

Anchor post
Anchor post

A steel tube which is pounded into the ground to directly anchor each hoop. The top part is partially flattened to fit inside the hoop. Large posts for 1×3″ hoops, and Small for 1×2″

Base brackets
Base brackets

a formed strip of steel that uses lag bolts to secure it to the base beam. The hoop slides over it for fastening and stability. Large is for 1×3″ and Small for 1×2″ hoops.

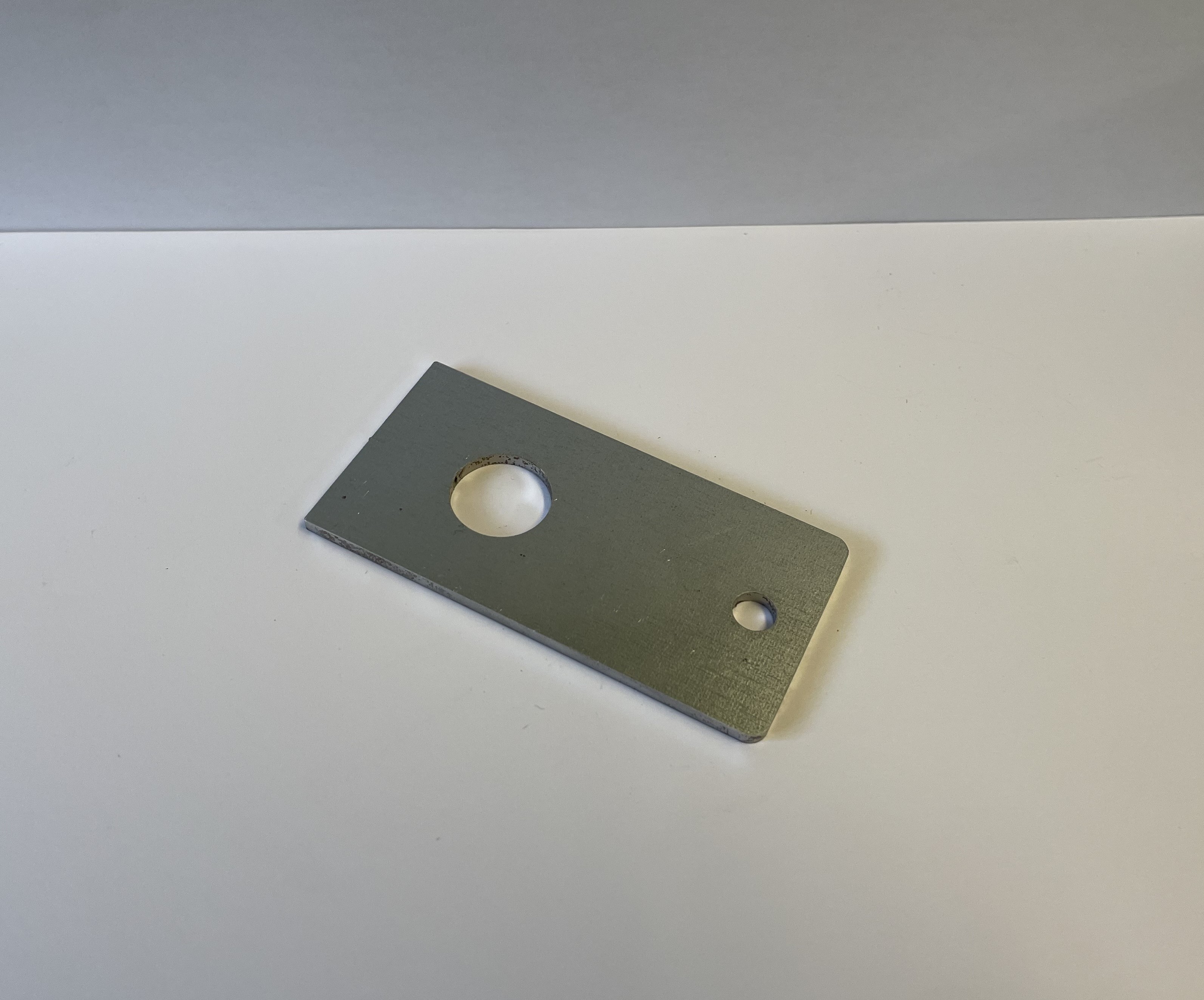

Base plate
Base plate

Base plates for the Hanley (caterpillar) tunnels.  The large hole is for placing the plate over the anchor rod, the small hole is for the clasp.

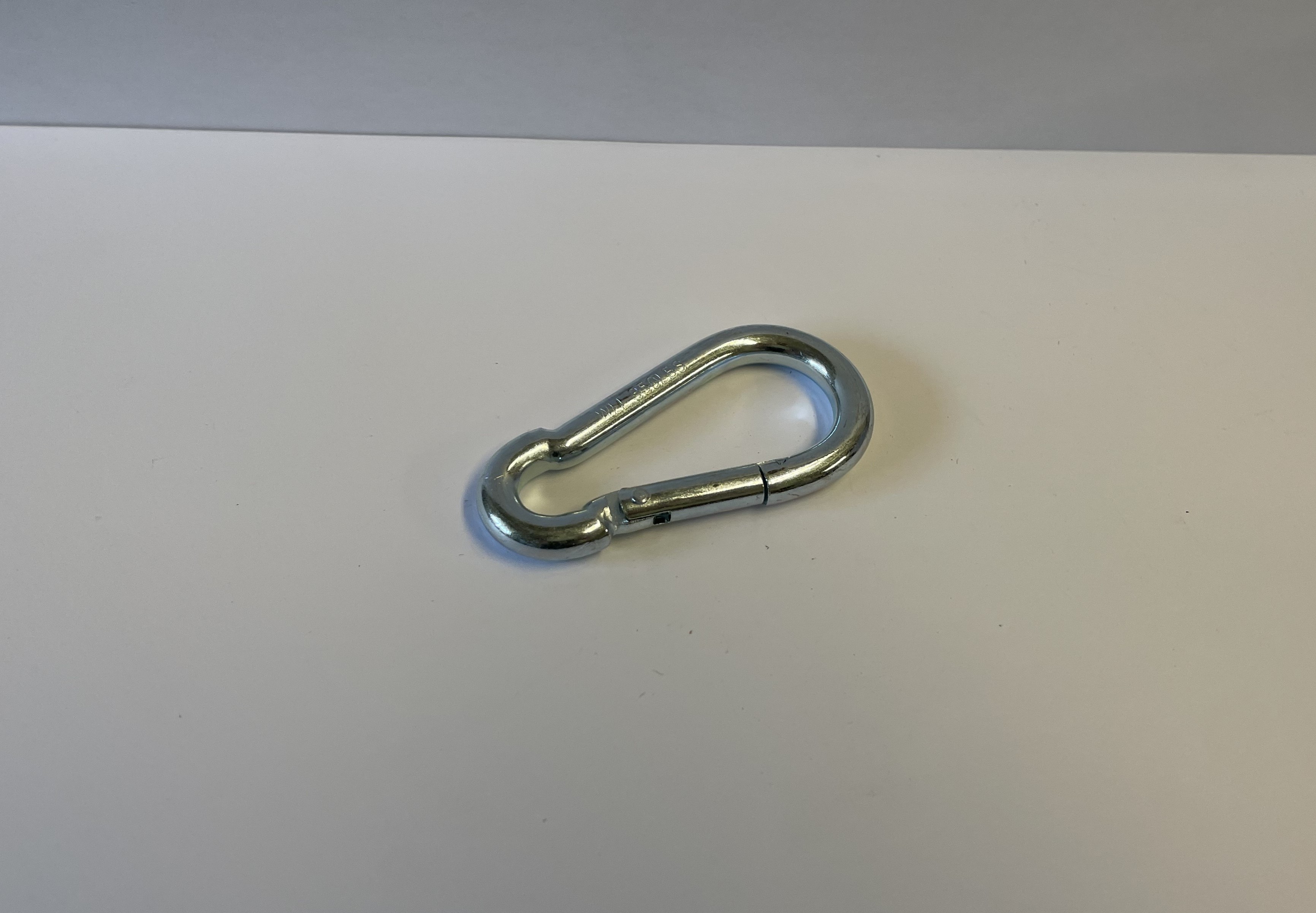

Clasp
Clasp

Clasp is connected to the base plate using the small hole. The rope is secured through the clasp.

Cross-tie (collar-ties)
Cross-tie (collar-ties)

Cross-ties (collar-ties) are used to connect the left and right sides of the structure to provide strength and stability.

Eye-Bolts
Eye-Bolts

Eye bolts are available in Threaded with nuts for steel or Screw in for wood. These are used to secure the anti-billow rope on the roll-up sidewall.

Hoop
Hoop

Hoops are also called arches or ribs. It is the curved piece of rectangular tubing making up the primary frame or skeleton of the structure. Available in 1×2″ or 1×2″ size. Structures have a pair of hoops that connect at the ride. The Hanley c […]

Inflator fan kit
Inflator fan kit

A small fan that blows continuously to maintain an air space between two layers of plastic. Double-output available for larger structures. Blower motors only are also available.  A kit includes a hanging bracket, electrical cord, poly adapter […]

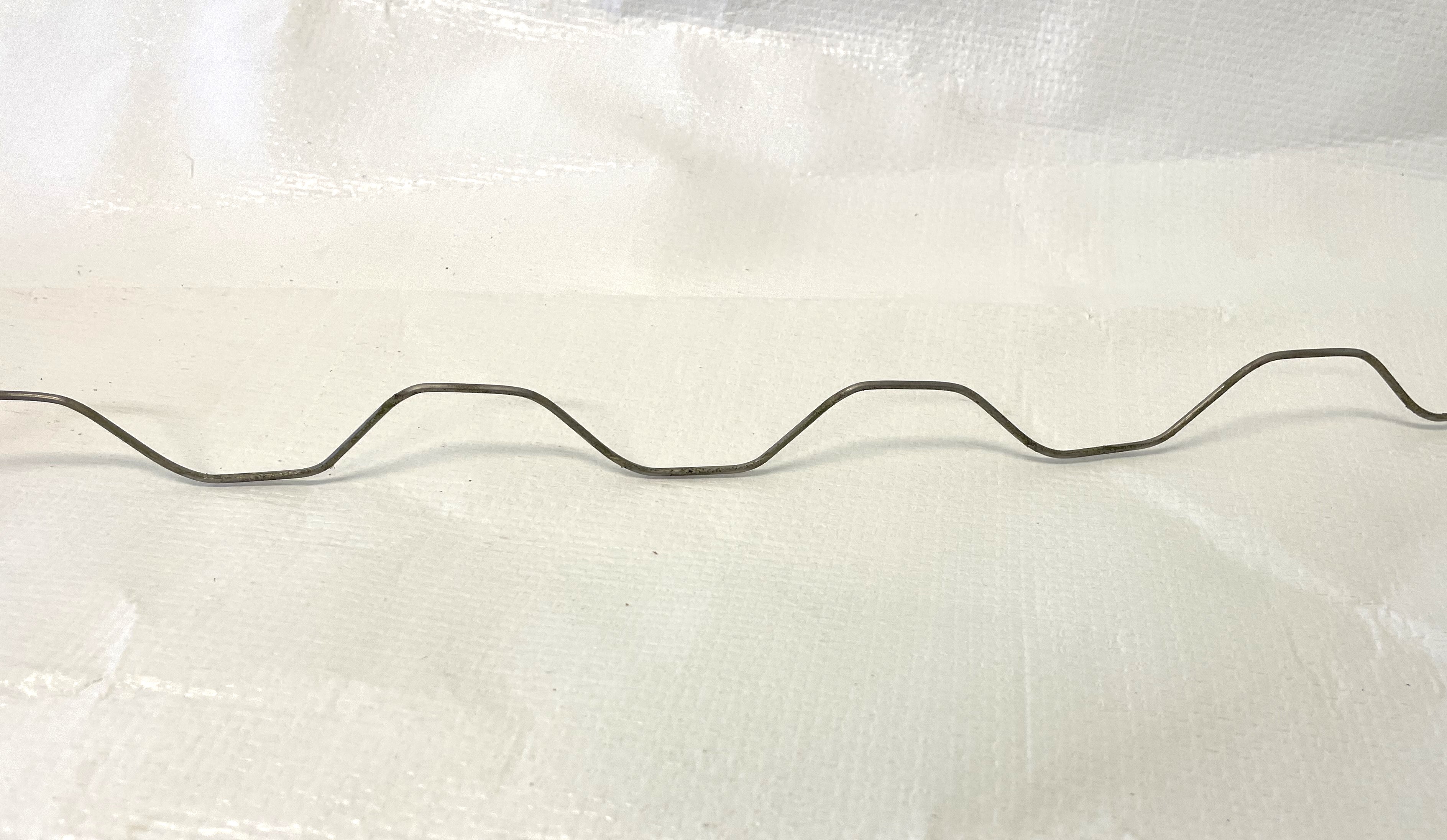

Insert, Wirelock (wiggle wire, zig-zag wire)
Insert, Wirelock (wiggle wire, zig-zag wire)

A stainless, heat-treated steel ” zig-zag” wire is used in the wirelock channel to hold the cover in place.  Available in 6′ lengths.

Pipe Strap
Pipe Strap

a steel bracket fitting around the hoop used to attach a wood or steel beam to the structure. Available in small for 1×2″ hoops, or large for 1×3″

Purlin
Purlin

Horizontal bar ( shorter than a windbrace) used for spacing and structural support between the hoops. Both ends are flattened and have a hole.

Purlin Clip
Purlin Clip

a “U” shaped bracket to attach Purlins or Wind Braces.  Large for 1×3″ and Small for 1×2″ hoops.
